Configuration Reference
Component Specification
Use the image for early review; confirm all components in the final BOM.

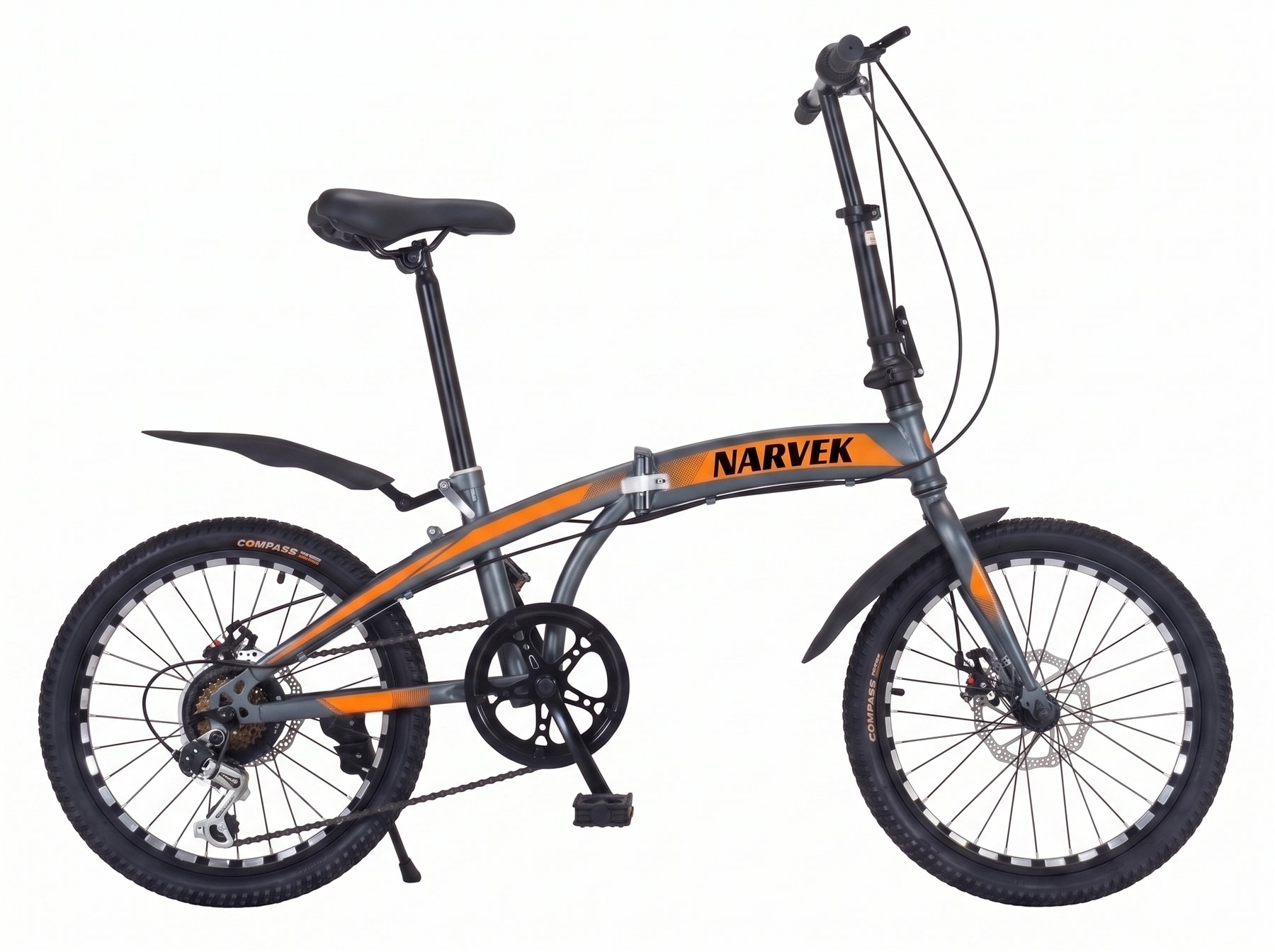

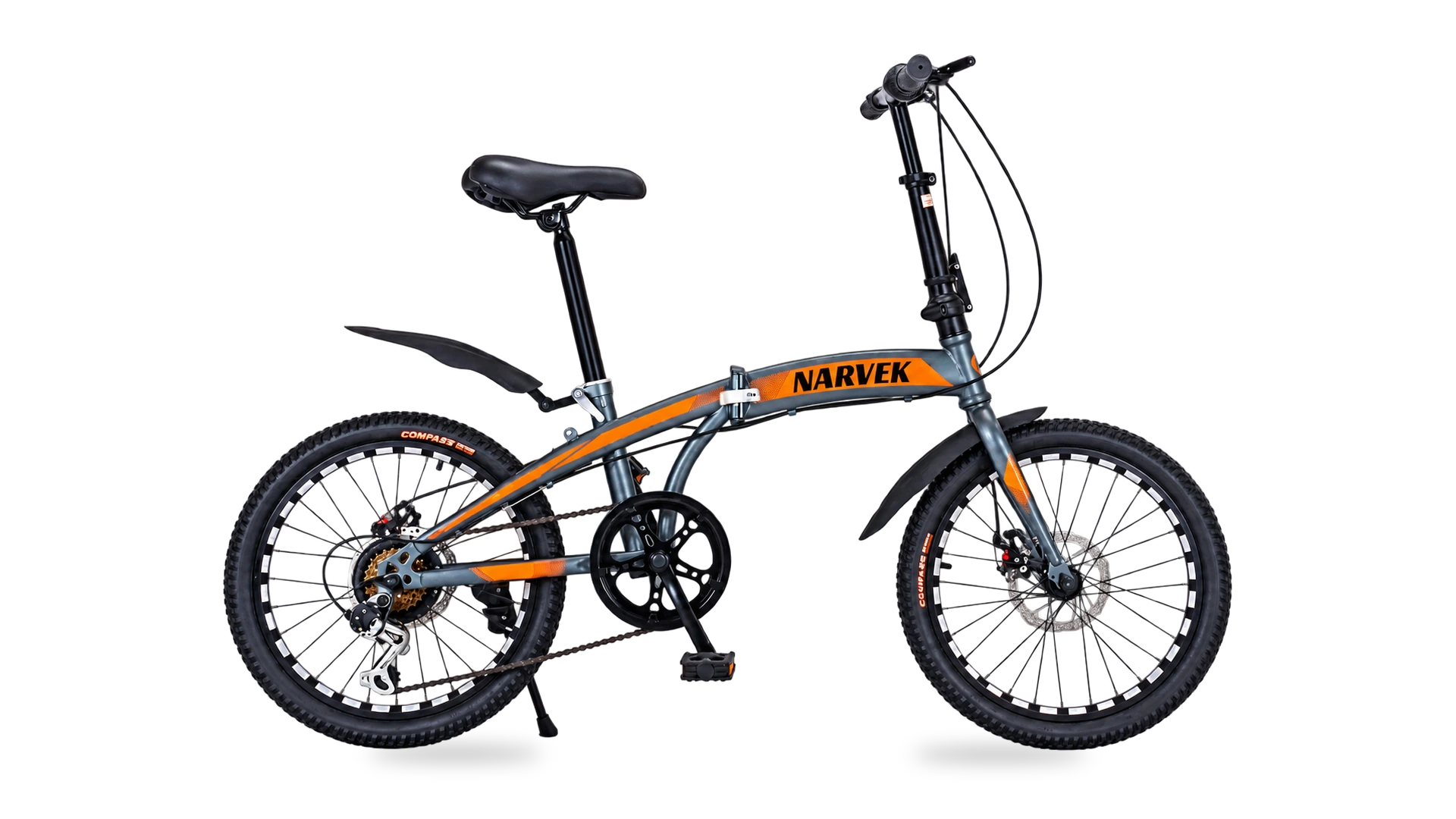

FB-02 / Folding Bike / 20 Inch
OEM 20-Inch Folding Bicycle —FB-02
A private-label folding bicycle reference for urban and space-conscious retail programs. Folding dimensions, weight, hinge checks, packaging and final components require written confirmation.
Procurement Summary
Measure the Folded Product, Not Just the Wheel.
FB-02 is identified as a 20-inch folding bike with three displayed colour directions and separate size and component reference images. Folded size, total weight, latch design and packaging volume should drive logistics and retail decisions.
Buyer action: request folded dimensions, latch/hinge inspection criteria, assembly percentage, carton measurements and loading quantity.
| Model | FB-02 |
|---|---|
| Type | 20-inch folding bicycle reference platform |
| Current media | Three displayed colour directions, size and component reference images |
| Folding data | Folded dimensions and mechanism checks confirmed in quotation |
| Order quantity | Share your planned quantity and colour split for a configuration-specific discussion |
| Customisation | Colour, decals, selected parts, manual, labels and carton |
| Packaging | Assembly percentage, carton, weight and loading data confirmed per order |
| Testing | Applicable standard and model coverage confirmed for destination market |

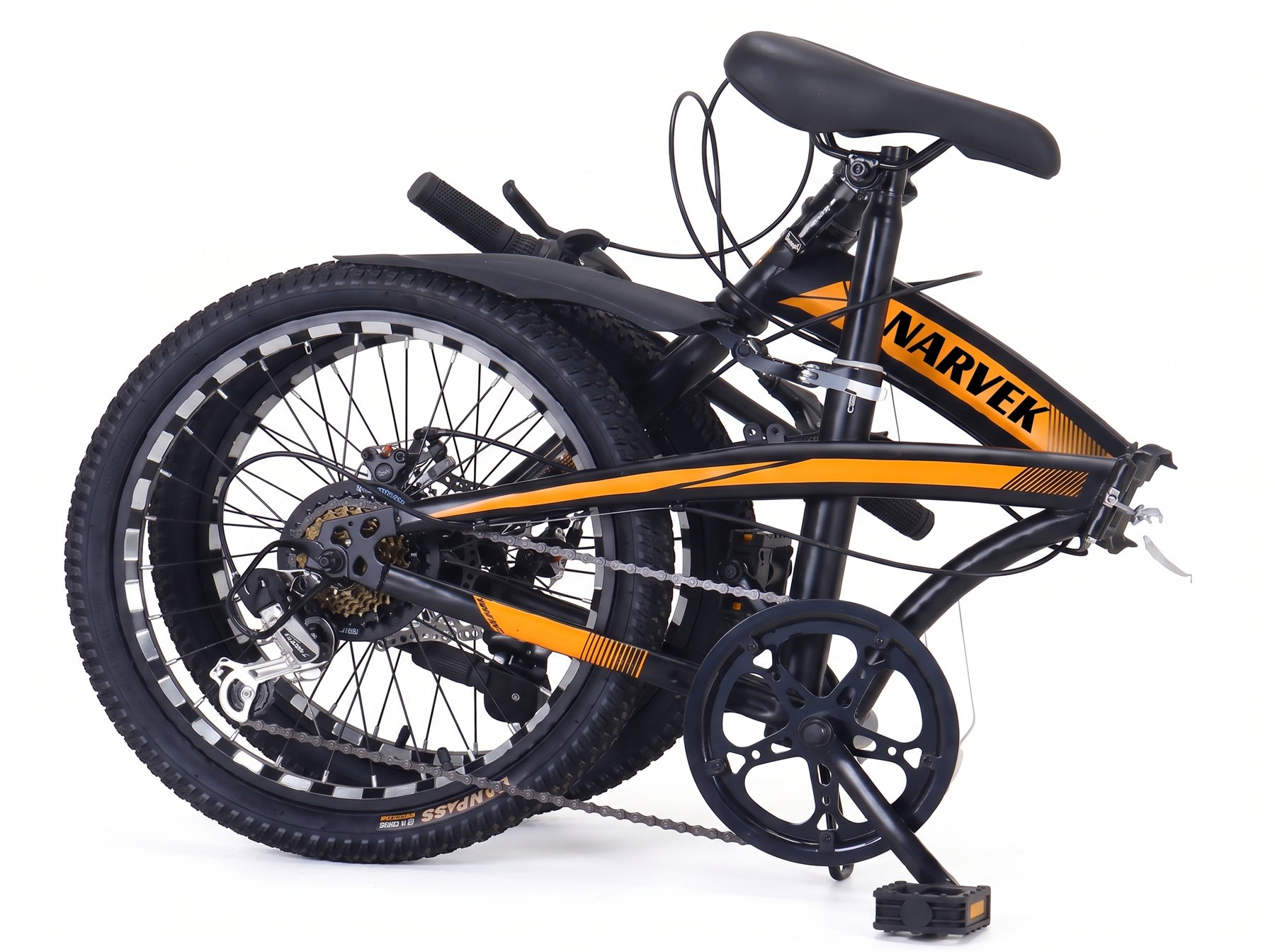

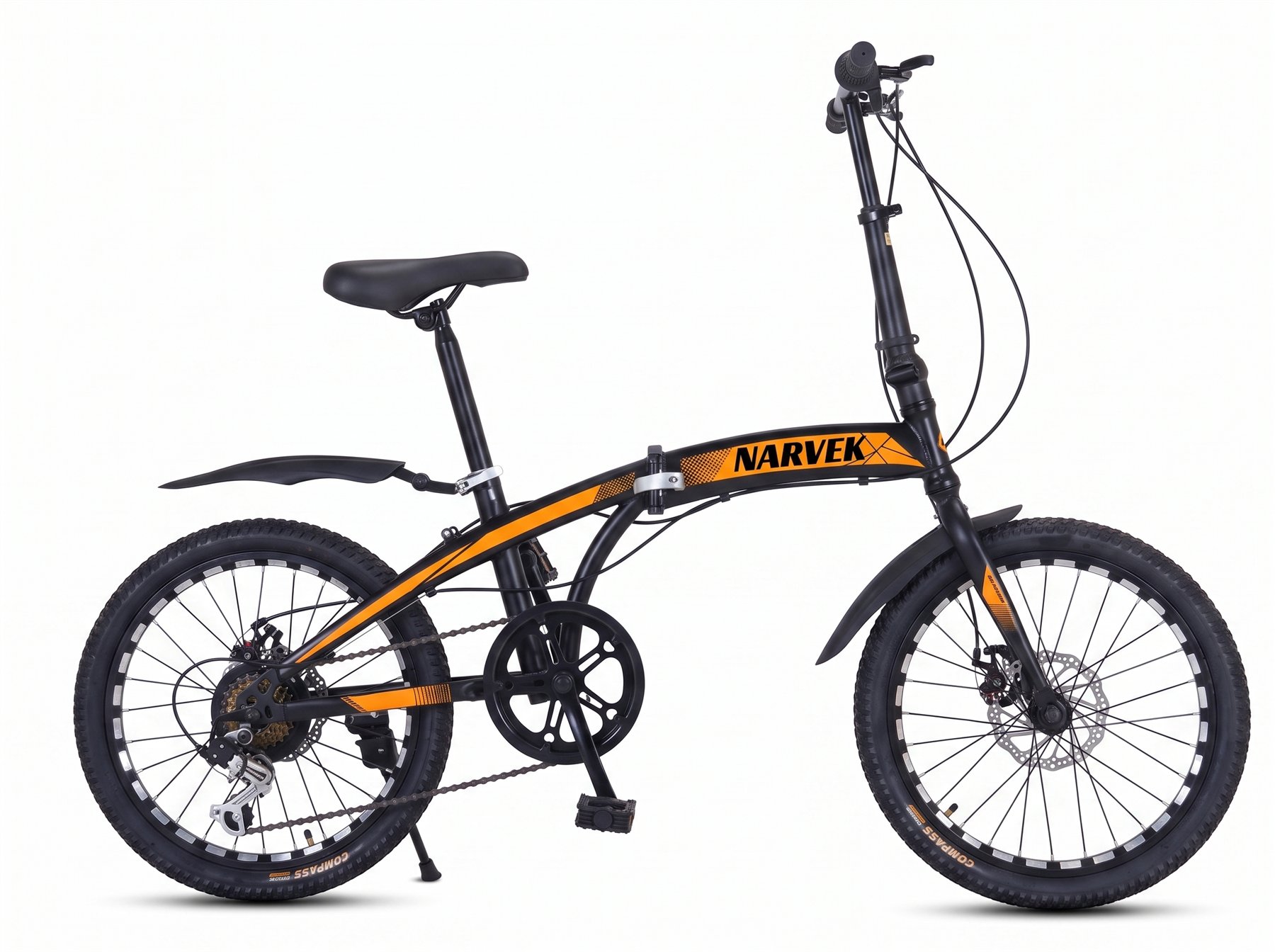

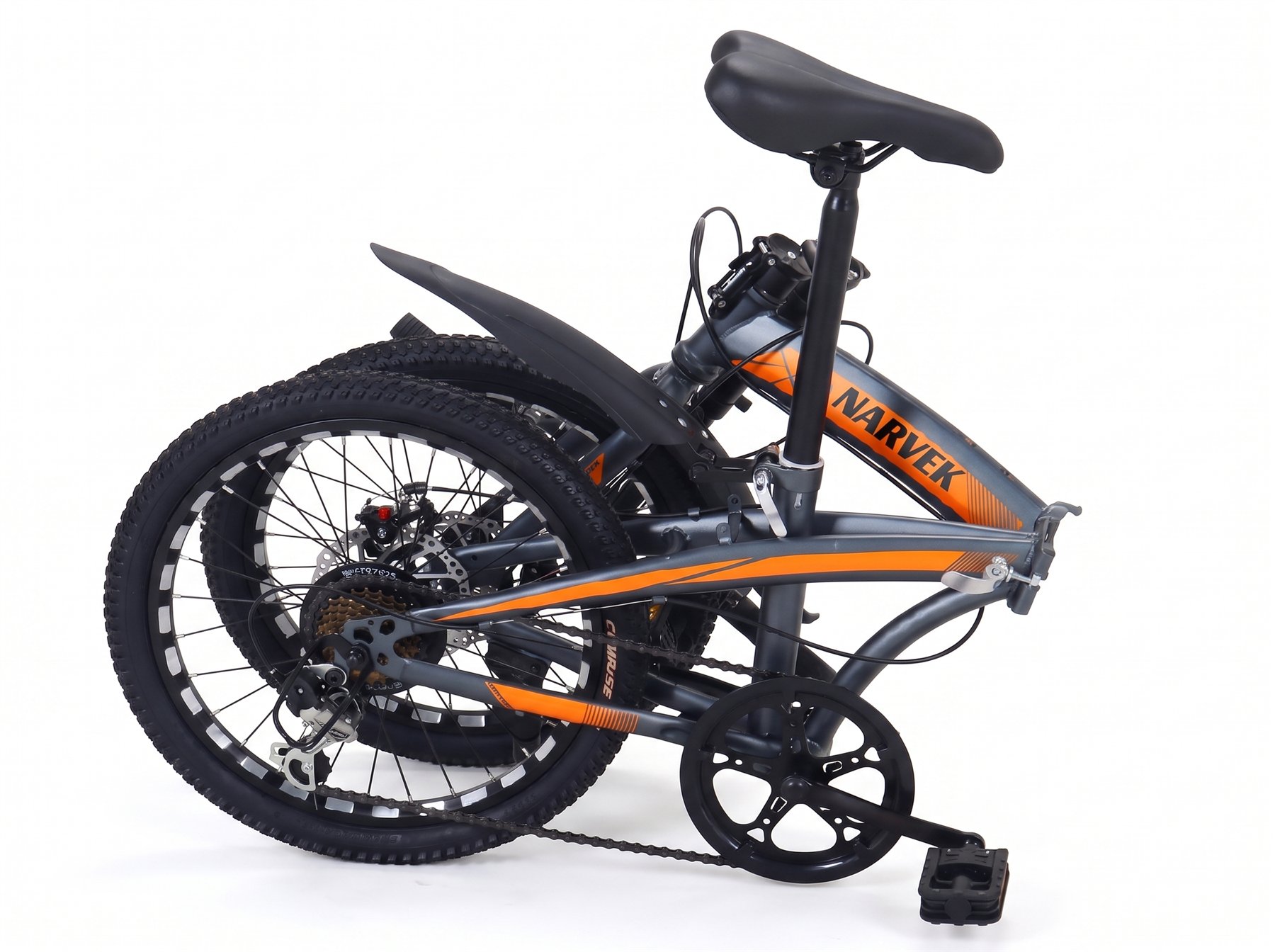

Colour Directions
Compare the Current Visual Options.
Colour images are visual references only. Final paint, decals, finish and colour split are confirmed against approved artwork and sample records.

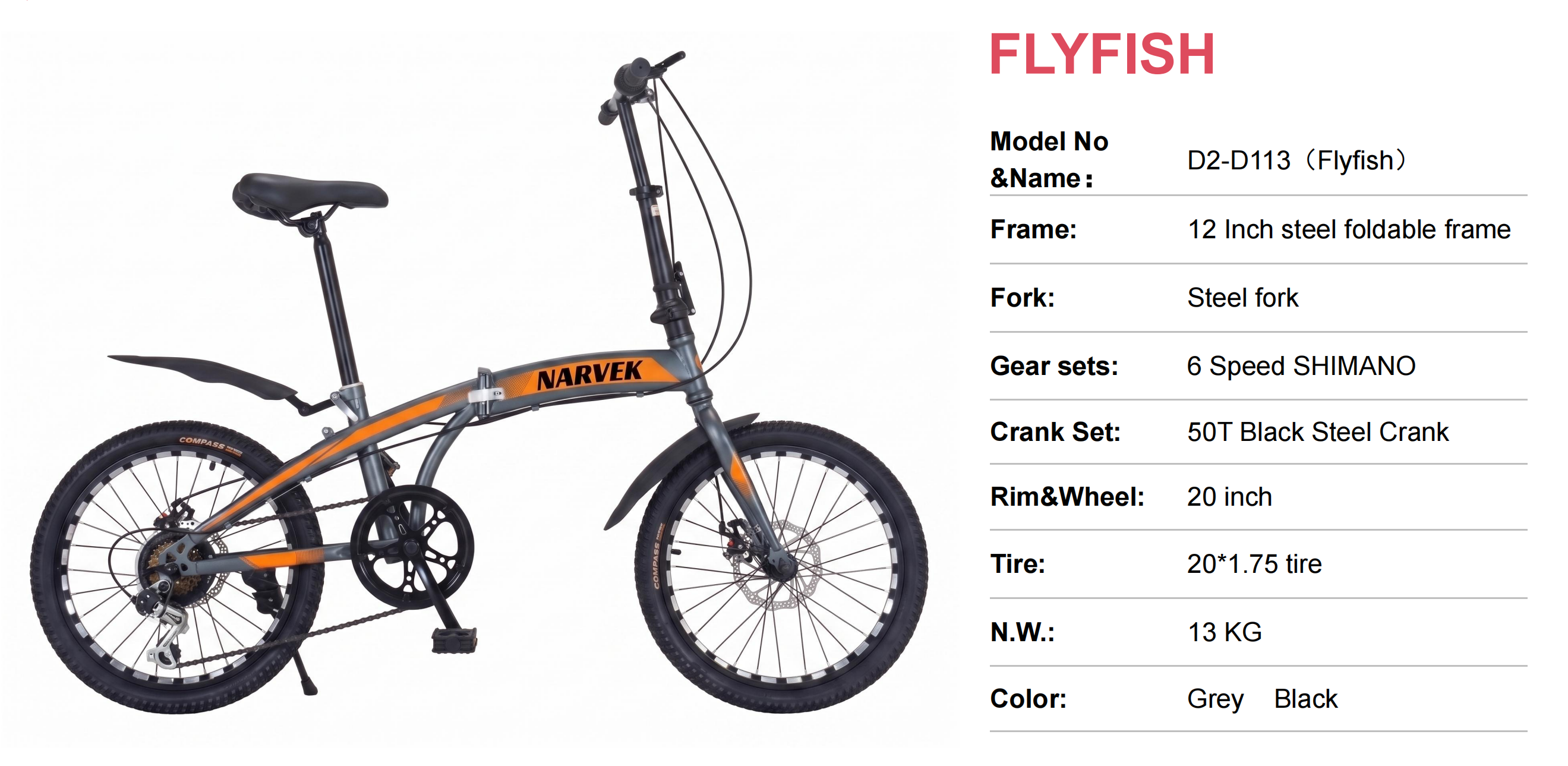

Technical Documents
Specification and Size, Kept Separate.
Review the current component and size documents independently. Folding dimensions, bicycle dimensions and the final BOM must be confirmed for the ordered configuration.

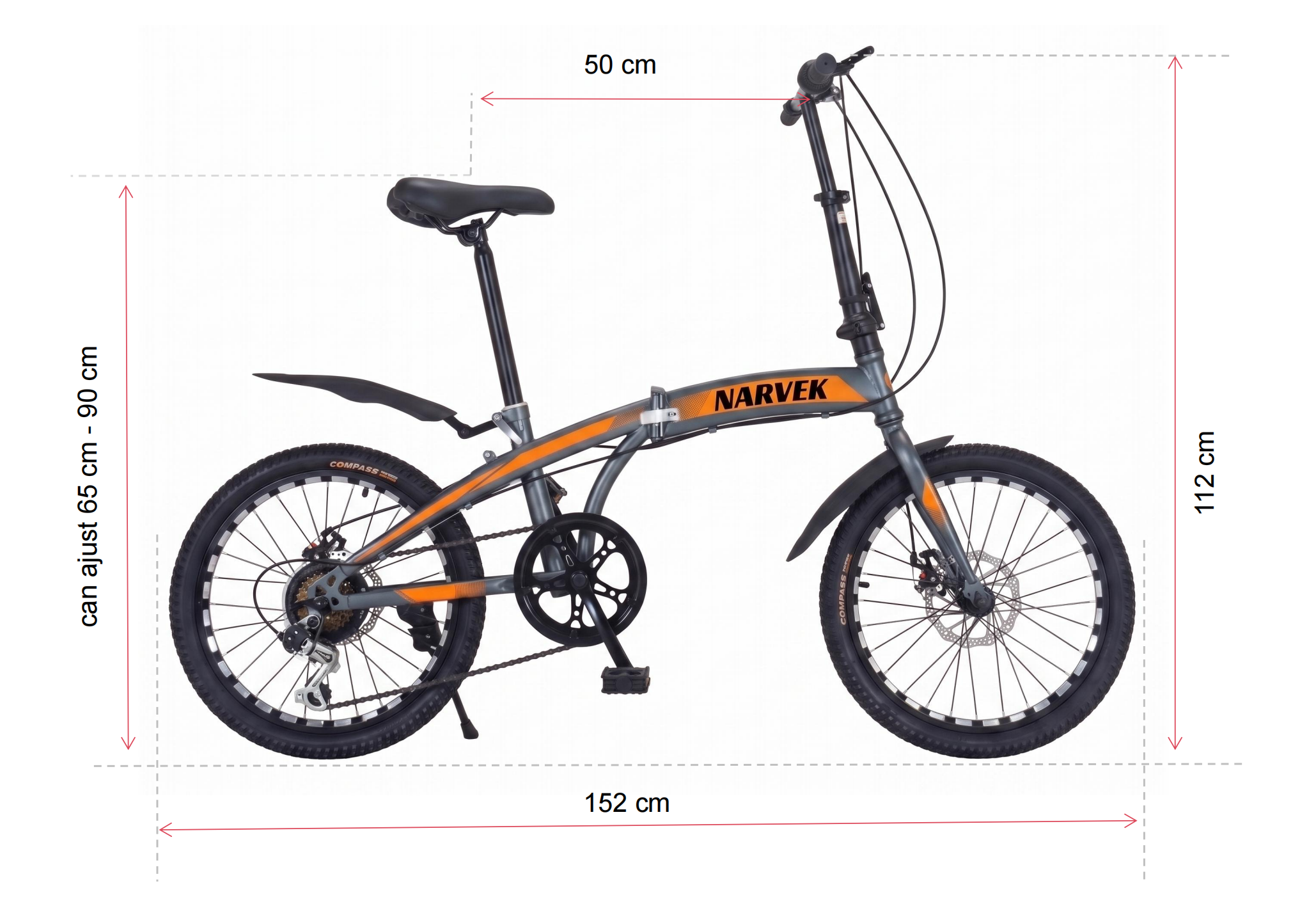

Dimension Reference
Product Size Chart
Confirm open and folded dimensions, measurement method and packing implications.
First-Sample Decision
Turn the FB-02 Reference Into an Approval Record.
A 20-inch wheel label and a colour image do not establish whether the folded bicycle fits your storage, carton or retail-service plan. Use the current photos and reference images to specify what the first sample must prove.
Check the bicycle in three states
Record the bicycle open for rider setup, folded for handling and storage, and packed in the proposed carton. Request the measurement method and photographs beside the recorded dimensions; keep the bicycle and carton records separate.
The published size reference is a starting point. Confirm the final configuration's open and folded measurements before using it for shelf, vehicle or carton planning.
Sample brief: ask for open and folded measurements, mass in each relevant state, proposed carton dimensions, assembly state and photos of the fold and packing sequence. These are requested records, not published FB-02 measurements.
| Buyer decision | Evidence to request for FB-02 |
|---|---|
| Fold and handling | Photo or short video of the fold sequence; latch/hinge closure and alignment check agreed for the sample. |
| Dealer setup | Open-bike assembly state, adjustment points and the instructions supplied with the proposed build. |
| Specification lock | Versioned component list matched to the reference image, plus written substitutions before approval. |
| Private label | One selected colour direction, artwork proof and placement photos on the sample. |
| Carton and market | Carton dimensions, protection and label/manual artwork; destination-specific document scope tied to the final configuration. |
FAQ
Folding Bike Buying Checks.
What are the folded dimensions?
Request the model-specific folded dimensions and measurement method with the quotation.
How is the folding mechanism checked?
Agree latch, hinge, alignment and repeated-operation inspection criteria before production.
How should I discuss order quantity?
Share the planned quantity and colour split. Confirm the feasible quantity with the final configuration in the quotation.
Can the packaging be customised?
Private-label carton, manual, barcode and labels can be reviewed, subject to quantity and approval.
Which documents apply?
Confirm the destination-market standard, report metadata, tested model and final configuration coverage.
What should I send for a quote?
Send FB-02, destination market, buyer type, planned quantity and colour split, branding files, required carton format and any sample measurements you need checked.
